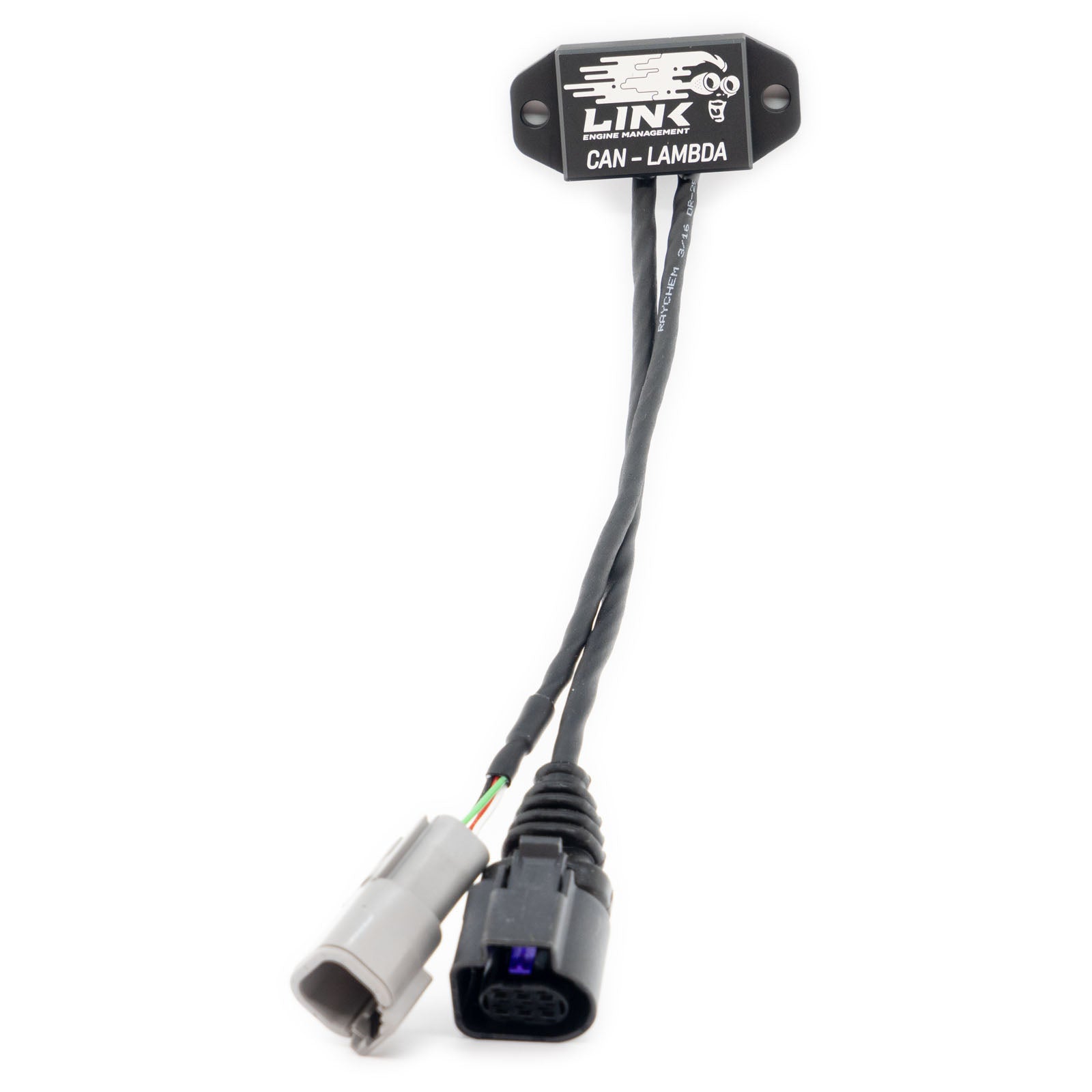

Link CAN Lambda Kit (CANLAM) – Digital Wideband O₂ Sensor

Link CAN Lambda Kit (CANLAM)

Link CAN Lambda is a digital wideband lambda system that measures oxygen in the exhaust and sends the data to a compatible ECU over CAN bus. It is designed for accurate fuel-mixture tuning and can support closed-loop lambda control on compatible systems.

What's Included

• CAN Lambda controller
• Bosch LSU 4.9 wideband sensor
• Deutsch 4-way connector kit
• O₂ sensor bung and plug
• Quick Start Guide
• Link stickers

Key Features

• Digital CAN-bus wideband measurement
• Bosch LSU 4.9 sensor
• No free-air calibration required
• Supports 1 Mbit/s, 500 kbit/s, 250 kbit/s and 125 kbit/s CAN speeds
• Lambda sensing range: 0.67–10 λ

Important

When used with a Link G4+/G4X PlugIn ECU, the CAN connection requires the appropriate Link CAN connection hardware for the ECU's CAN connector. Older PlugIn ECUs use CANJST, while newer 4-pin powered PlugIn ECUs use CANJST4. Verify your ECU before ordering the cable.

The Bosch LSU 4.9 sensor included with this product is sold for aftermarket use and is not covered by Bosch's aftermarket warranty.

Need help choosing the correct CAN connection cable for your ECU? Contact Kore Spec with your ECU model.
